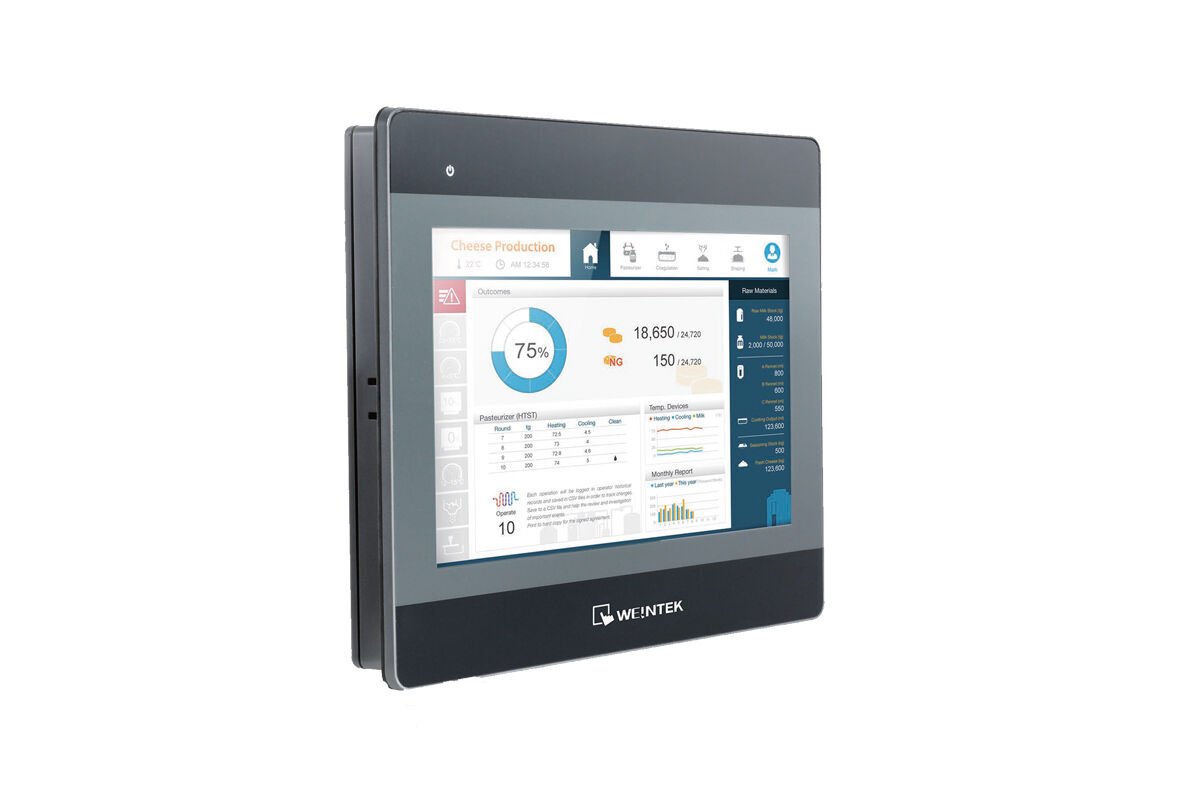

WEINTEK MT8102iP 10.1'' HMI Panel
0,00 ₺
Stok Kodu
V9LSTTHFMU
Fiyat
0,00 EUR + KDV
Bugün sipariş verdiğiniz de aynı gün kargoda!
Weintek MT8102iP 10.1'' HMI Panel
MT8102IP TFT, 16.7M RENK, 528MHz CPU, 1024x600, Ethernet Portu, MT810iP Dokunmatik Operatör Paneli
| Display : | 10,1" TFT |
| Resolution: | 1024x600 |
| Brightness (cd/m2) : | 350 |
| Contrast Ratio : | 500:1 |
| Backlight Type : | LED |
| Backlight Life Time : | >50.000 Hours (saat) |
| Colors : | 16.7 M |
| LCD Viewing Angle (T/B/L/R) : | 70/70/80/80 |
| Type : | 4-Wire Resistive Type |
| Accuracy : | Active Area Lenght (X) +-2% |
| Flash : | 128 MB |
| RAM : | 128 MB |
| Processor : | 32-Bit RISC 600 MHz |
| I/O Port - USB Host : | USB 2.0 x 1 |
| Ethernet : | 10/100 Base-T x 1 |
| COM Port : | ConA:Com2 RS-485 2W/4W , Com3: RS-485 2W , ConB: Com1 RS232 4W, COM3: RS-485 2W |
| RTC : | Built-in |
| Input Power : | 10.5 ~ 28 VDC |
| Power Consumption : | 1300mA at 12V DC ; 650mA at 24V DC |
| Enclosure : | Plastic |
| Dimensions : | 271x213x36,4 mm |
| Panel Cutout : | 260 x 202 mm |
| Weight : | Approximity 1 kG |
| Mount : | Panel Mount |
| Protection Structure : | NEMA+ / IP65 Compliant Front Panel |
| Operating Temperature : | 0 ~ 50 Celius Degree |
| CE : | CE Marked |
| Software - Weincloud : | EasyAcees 2.0 (Optional) |
