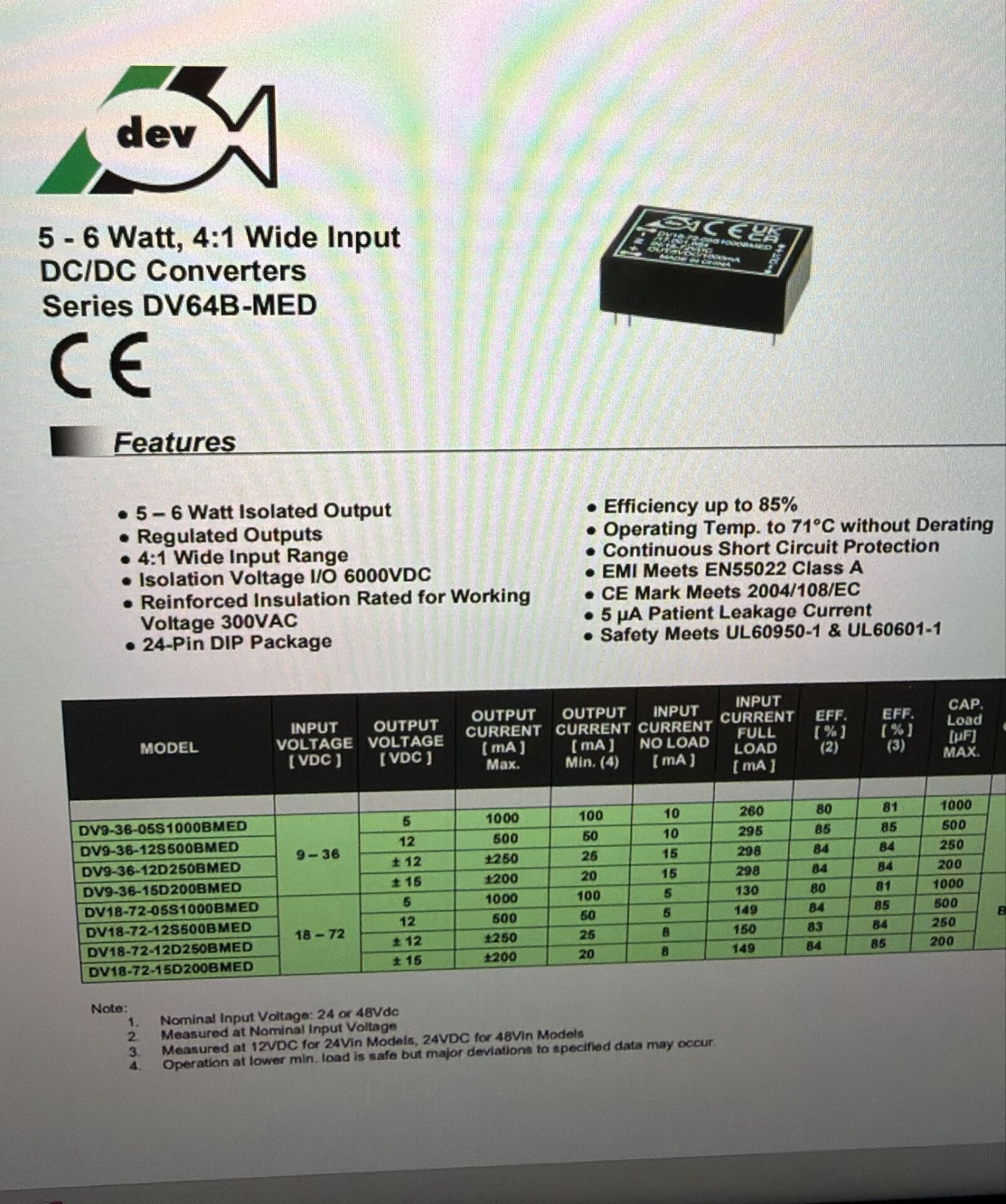

5 – 6 Watt Isolated Output ● Efficiency up to 85% ● Regulated Outputs ● Operating Temp. to 71°C without Derating ● 4:1 Wide Input Range ● Continuous Short Circuit Protection ● Isolation Voltage I/O 6000VDC ● EMI Meets EN55022 Class A ● Reinforced Insulation Rated for Working ● CE Mark Meets 2004/108/EC Voltage 300VAC ● 5 µA Patient Leakage Current ● 24-Pin DIP Package ● Safety Meets UL60950-1 & UL60601-1 MODEL INPUT VOLTAGE [ VDC ] OUTPUT VOLTAGE [ VDC ] OUTPUT CURRENT [ mA ] Max. OUTPUT CURRENT [ mA ] Min. (4) INPUT CURRENT NO LOAD [ mA ] INPUT CURRENT FULL LOAD [ mA ] EFF. [ % ] (2) EFF. [ % ] (3) CAP. Load [µF] MAX. CASE DV9-36-05S1000BMED 9 – 36 5 1000 100 10 260 80 81 1000 B DV9-36-12S500BMED 12 500 50 10 295 85 85 500 DV9-36-12D250BMED ± 12 ±250 25 15 298 84 84 250 DV9-36-15D200BMED ± 15 ±200 20 15 298 84  DEV DORSCHE DV9-36-05S600B 84 200 DV18-72-05S1000BMED 18 – 72 5 1000 100 5 130 80 81 1000 B DV18-72-12S500BMED 12 500 50 5 149 84 85 500 DV18-72-12D250BMED ± 12 ±250 25 8 150 83 84 250 DV18-72-15D200BMED ± 15 ±200 20 8 149 84 85 200 Note: 1. Nominal Input Voltage: 24 or 48Vdc 2. Measured at Nominal Input Voltage 3. Measured at 12VDC for 24Vin Models, 24VDC for 48Vin Models 4. Operation at lower min. load is safe but major deviations to specified data may occu DEV DORSCHE DV9-36-05S600B
