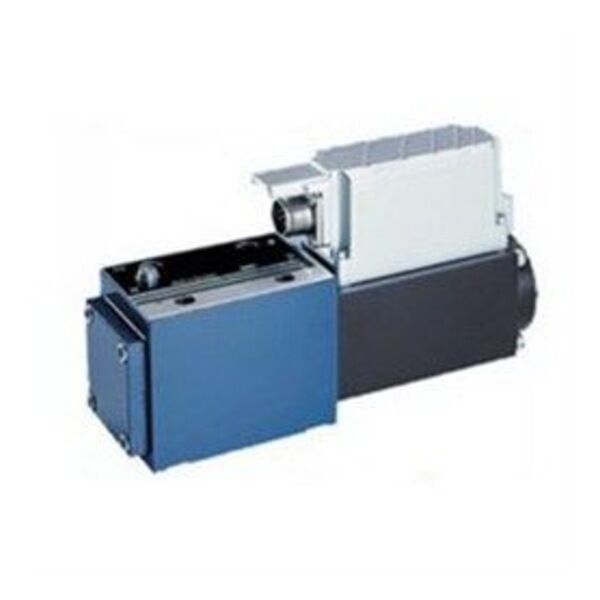

Bosch Rexroth Hydraulics 0811404603
83.995,00 ₺
83.995,00 TL den başlayan taksitlerle!
Taksit Seçenekleri
Stok Kodu
FUQXH1YSJL
Fiyat
1.308,33 EUR + KDV
Bugün sipariş verdiğiniz de aynı gün kargoda!
| Type: | Direct Operated, High-Response |
| Series: | WRPEH6 |
| Size: | 6 |
| Fluid Type: | Mineral Oil (HL, HLP) |
| Electrical Connection: | Without Plug-In Connector, With Plug to DIN 43563-AM6 |
| Actuator Type: | Control Servo Solenoid With Position Control |
| Number of Ways: | 4 |
| Number of Position: | 4 |
| Flow Rating: | 40Lpm (Linear) |
| Voltage Rating: | 24VDC |
| Power Rating: | 40VA |
| Seal Material: | NBR |
| Mounting: | Subplate |
| Spool Action: | Fail Safe Position |
| Spool Symbol: | C3 |
| Viscocity: | 10-800 sq-mm/sec |
| Pressure Rating: | 250 - 315 Bar |
| Temperature Rating: | -20 to 50 deg C |
| Fluid Temperature Rating: | -20 to 70 deg C |
| Includes: | Sleeve, Integrated Control Electronics |
| Dimensions: | 198 mm Depth x 46 mm Width x 115 mm Height |
| Weight: | 2.7kg |
